Leg Vise

I picked out a scrap piece of oak and planed it down for my leg vise. I used my make-shift clamping system with the holdfasts and my work table.

I gave up trying to thread my dowels and broke down and bought an old wooden screw clamp with one inch diameter screws. This will be strong enough for the leg vise and if it's not, I'll figure something else out.

I attached the screw through the front vise board and the front left leg and screwed it into half of it's original clamp.

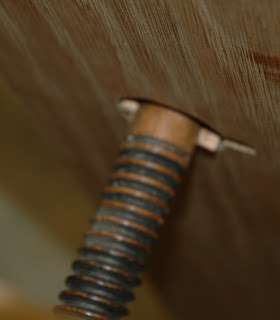

Then I used an 1.5" forstner bit to wallow out behind the screw head, chopped a little trench to get it started, and pushed a piece of dowel through the screw to hold it to the front vise board.

I took a piece of 1 7/16" dowel and drilled holes about every inch in it. I drilled a quarter inch hole through the edge of the face board, going through the end of the dowel and pinned them together with an oak dowel. I found a little piece of steel bar to use for the adjustment. This way I can let the base of the vise out if I clamp wider objects.

I couldn't wait to try it. It clamps boards just fine. I think this is going to make finishing the other vise on the end much easier. Things are progressing faster and faster...

Son2 tries it out and planes a pine board.
